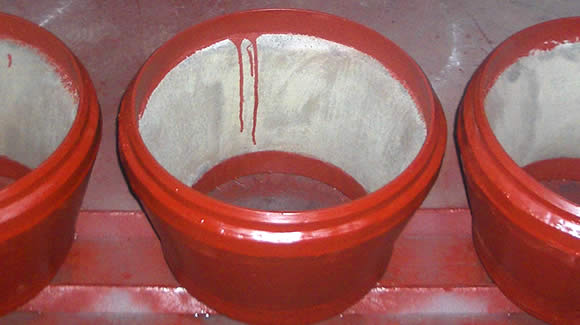

Ceramic Lined Reducer Pipe is integrally fired ceramic tube , with a special molded ceramic filler pouring inside the pipe reducer assembled.
Adjustable ceramic tube ceramic lined pipe affixed to the alumina content of not less than 95 %. 200T dry pressure forming , sintering temperature up to 1670 celsius degree. Has a strong high-pressure high-temperature capabilities !

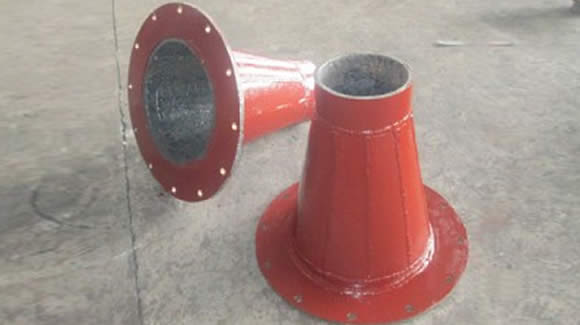

+ Ceramic Lined Reducer Pipe with flange
Wear-resisting comparative table of ceramic lining pipe
Sand injection test
30% Transfer test of sludge with SiO2
Material
Volume diminution
(cm3)
Material
Volume diminution
(cm3)
Ceamic lining
Steel pipe
0.0022
Ceamic lining
Steel pipe
3
Ceramic pipe
Al2O397%
0.0025
S45C
25
Performance advantages
abrasion
The Al2O3 content of the ceramic inner lining reducer is more than 95%, and the microhardness is HV1000-1500. It has high wear resistance, and the wear resistance is ten times higher than that of the quenched carbon steel, and the superior tungsten carbide bit.
corrosion
The ceramic material is neutral, chemical property is stable, has excellent corrosion resistance and acid resistance, resistant to various inorganic acids, organic acids, organic solvents, its stainless steel corrosion degree is more than ten times.
temperature
The temperature is above 2000 degrees Celsius, and it works in the range of -50celsius~900 degrees Celsius for a long time.
Easy welding
Ceramic adjustable pipes can be welded, flanges, flexible connectors and other fast connections, very easy to install.
Clean, easy to maintain
The wall is smooth, which can prevent fouling, dirt and self cleaning function. Seal.
Remarks:
1. In the direction of the arrow diagram, the direction of the derivation is in the direction of the arrow.
2. The bending radius is usually 1.5-5 times the diameter of the steel pipe (1.5-5D).
3. The specifications of composite pipes can be manufactured according to user requirements.
4. The weight is calculated theoretically, and there may be some tolerance. The real weight will be weighed after they are finished.
The circumferential strength is the resistance to the radial pressure. The strength of ceramic linear steel composite pipes is 300 to 500MPa.
